Seed Grader
Description:

Suitable for grading peanut and other pulses.

Mesh can be changes as per the product

Multi Mesh drawer system with 2-3 grades simultaneously

M.O.C.: MS.

Elec. Power: – 3 PHs / 415 V / 50 Hrtz.
Read more
Seed Separator Counting Machine
Description:

Size: 4 ft. x 8 ft

Type: Spherical Movement

Better density separator and NON-Clotting of Mesh

Multi Mesh drawer system with 5 grades simultaneously

M.O.C.: MS.

Elec. Power: – 3 PHs / 415 V / 50 Hrtz.
Read more
Slicing
Description:

Function: For slicing of Fruits & vegetables.

Brief spec:

Feed Hopper for feeding peeled vegetables in the slicing chamber

SS High seed rotating knifes inside the slicing chamber.

Discharge tray at the bottom.

M.O.C: contact parts SS

Elec. Power: 3 Ph./ 415 V / 50 Hrtz.

Capacity: 100 – 1000 Kg / hr approx.
Read more
Steam / Water Batch / blancher
Description:

Function: For blanching of Fruit & Vegetable up to 90 deg.

Brief spec:

Rectangular tank, perforated/grilled false bottom.

Electrical heaters mounting arrangement.

Water sealed top covers.

perforated baskets with handles.

M.O.C.: SS 304.

Holding Capacity: 15 – 60 Kg batch

Elec. Power: – 9 kw / 3 Phs. / 50 Hrtz. / 415 V.
Read more
Steam Kettles
Description:

Function: Cooking / Concentrating, preparation of pulp and mixing with other additives etc.

Brief spec:

Hemi spherical bowl /closed type.

Heavy duty tripod/four legs structure.

Complete with spring loaded and adjustable Teflon scrapers etc.

All necessary steam fittings like Y strainer, Temp gauge, Pressure gauge, steam trap etc.

Motor & pulley Guard etc.

All necessary steam fittings, safety valve, steam trap etc.

M.O.C.: SS 304.

Holding Capacity: 100 – 2000 Ltrs. (water volume)

Elec. Power: – 3 Phs. / 415 V / 50 Hrtz.
Read more
Two stage Pulper
Description:

Pulper mounted on rigid structure with coarse pulping & fine pulping chambers.

Coarse Pulping will have 2 Nos. of Brushes & 2 Nos. of Cutting Beater blades.

Polypropylene base nylon Brushes caged.

Openable cover on top for easy cleaning after production batch.

Product outlet from stage one will transfer stage two from pipe.

M.O.C.: SS 304.

Input Capacity: 100 – 5000 Kg / Hr. (soaked tamarind)

Elec Power: – 3 Phs. / 415 V / 50 Hrtz
Read more

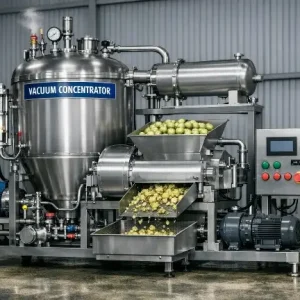

Vacuum Concentrator
Description:

Main shell cylindrical, hemispherical steam jacket at bottom and hemispherical dome from top.

Anchor type slow speed agitator fitted with spring loaded Teflon scrappers to scrape the heating surface.

The slow speed stirrer is driven by electric motor and gear box.

Water ring type vacuum pump, product discharge. Pump, 4leg support.

Machine complete with pressure gauge, direct mixing type condenser, condenser discharge pump.

The vacuum pan will be connected to condenser by vapor duct.

Elect power: 2 HP for agitator, 5HP. Vacuum pump, 5 HP Condensate discharge pump, 1.5 Hp product outlet / recirculation pump.

MOC: Contact parts SS 304/non-contact MS

Capacity: Holding Capacity 1000 Lit. (water volume)

Qty: 2 nos.
Read more
Vibro Shifter
Description:

S.S. 304 contact parts.

GMP Model with all external, visible and non-contact parts either made of or covered with S.S. 304.

Single deck model with dust cover and feeding chute.

3 PU lined castor wheels with S.S. 304 brackets with brakes.

0.5HP vibrating motor with manufacturers certificate.

Control panel complete with ON / OFF push button without contactor or relay.

Machine supplied fitted with one CGMP lead free sieve with silicone rubber bidding.

All S.S. surfaces mirror polished.
